ARUS® – ROBOT ASSISTED
ULTRASOUND SCANNING
ARUS® is a robotic solution aimed at offering an efficient robot assisted ultrasound for scanning of pregnant women compatible with most ultrasound devices on the market.
This is accomplished by integrating cutting-edge technology, including advanced sensors and remote controllers with precise haptic feedback.
ARUS® IS AIMED AT PROTECTING STAFF AND PREVENTING INJURY
Eliminating strain on sonographers — no need for repetitive movements, sustained force, and awkward postures.
One sonographer workflows — reducing team fatigue and need for additional staff.
ENDING WORK-RELATED INJURIES IN SONOGRAPHY
Work-related musculoskeletal disorder (WRMSD) is a widespread issue in sonography — affecting over 90% of practitioners, primarily caused by the repetitive use of force, awkward arm and shoulder postures, and extended scanning sessions under physical strain.
THE IMPACT EXTENDS BEYOND THE INDIVIDUAL
When a sonographer is injured this results in a cascading cycle of injury and innefficiency within the department. The economic impact is significant driven by absenteeism, hiring, training and reduced throughput — with fewer scans performed per day.
1 O. J. Pallotta, A. Roberts, Musculoskeletal pain and injury in sonographers, causes and solutions, 2016
ARUS® BRINGS A NEW SCANNING APPROACH, DESIGNED TO OFFER:
Efficient scanning of high BMI patients
Enabling one sonographer to easily perform scans on obese patients.
Clinical precision in complex scans
Continuous stability control and full precision during lengthy or complex scans.
Pain-free workplace
Eliminating physical strain during scanning.
Smoother scanning, greater patient comfort
Allowing for gentler scanning and increasing patient comfort.
SEAMLESS INTEGRATION AND CONTROL
- Compatible with all ultrasound scanners
- Joystick with haptic feedback
- Adaptive pressure control
- Inherent safety for the patient and the operator

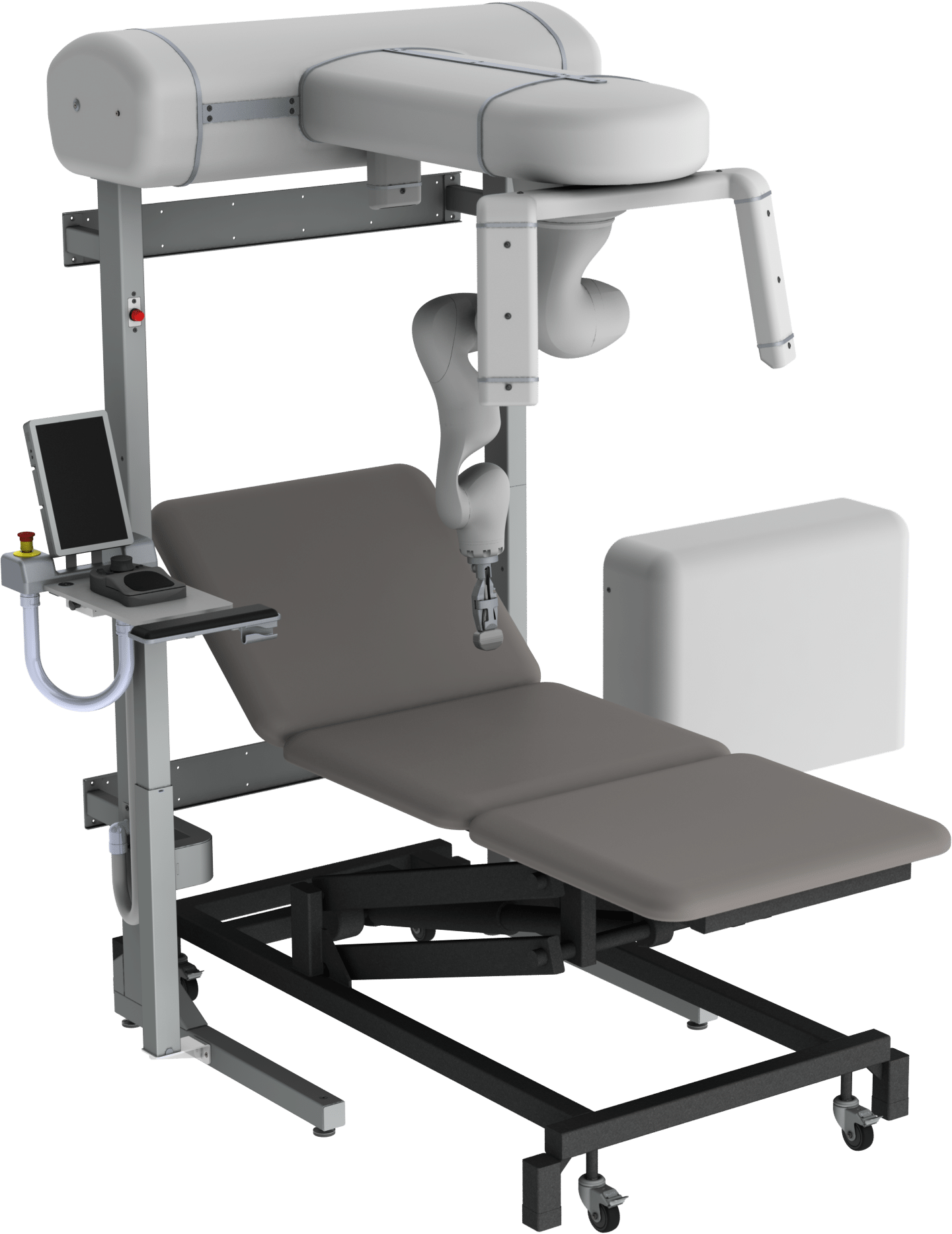

SPECIFICATIONS
Name
ARUS®
Catalogue number
25-800-000 (100) / 25-800-001 (130)
Basic UDI
574400408259000006M
Warranty
Minimum 2 years and/or 10,000 hours
Rated input
100 V - 240 V AC
Frequency
50Hz - 60 Hz ± 1 Hz
Rated power input
1 kVA
Operating temperature
5°C – 35°C
Storage temperature
0°C – 45°C
Atmospheric pressure
700 - 1060 hPa
Humidity
20% - 80% RH
Environment
Indoor usage
Ingress
IP21
Maximum area of reach
500 x 500 x 400 mm
Sound level
67 DBA
Dimensions
25-800-000: 1543mm x 1513mm x 2363mm 25-800-001: 1843mm x 1513mm x 2363mm
Weight
330 kg
