HERA® – ROBOT ASSISTED
ULTRASOUND SCANNING

HERA® is a robotic solution aimed at offering an efficient robot assisted ultrasound for scanning of pregnant women compatible with most ultrasound devices on the market.
This is accomplished by integrating cutting-edge technology, including advanced sensors and remote controllers with precise haptic feedback.

MAIN FEATURES:

Reduces sick leave for staff

Removes the cause of developing Work-Related Musculoskeletal Disorders (WRMSD)

Increases efficiency

Sonographers can carry out more scanning hours per day

Workforce Relief Solution

Helps clinics provide relief to their workforce

New paradigm in scanning

Opens up new new opportunities for working with AI and intelligent scanning

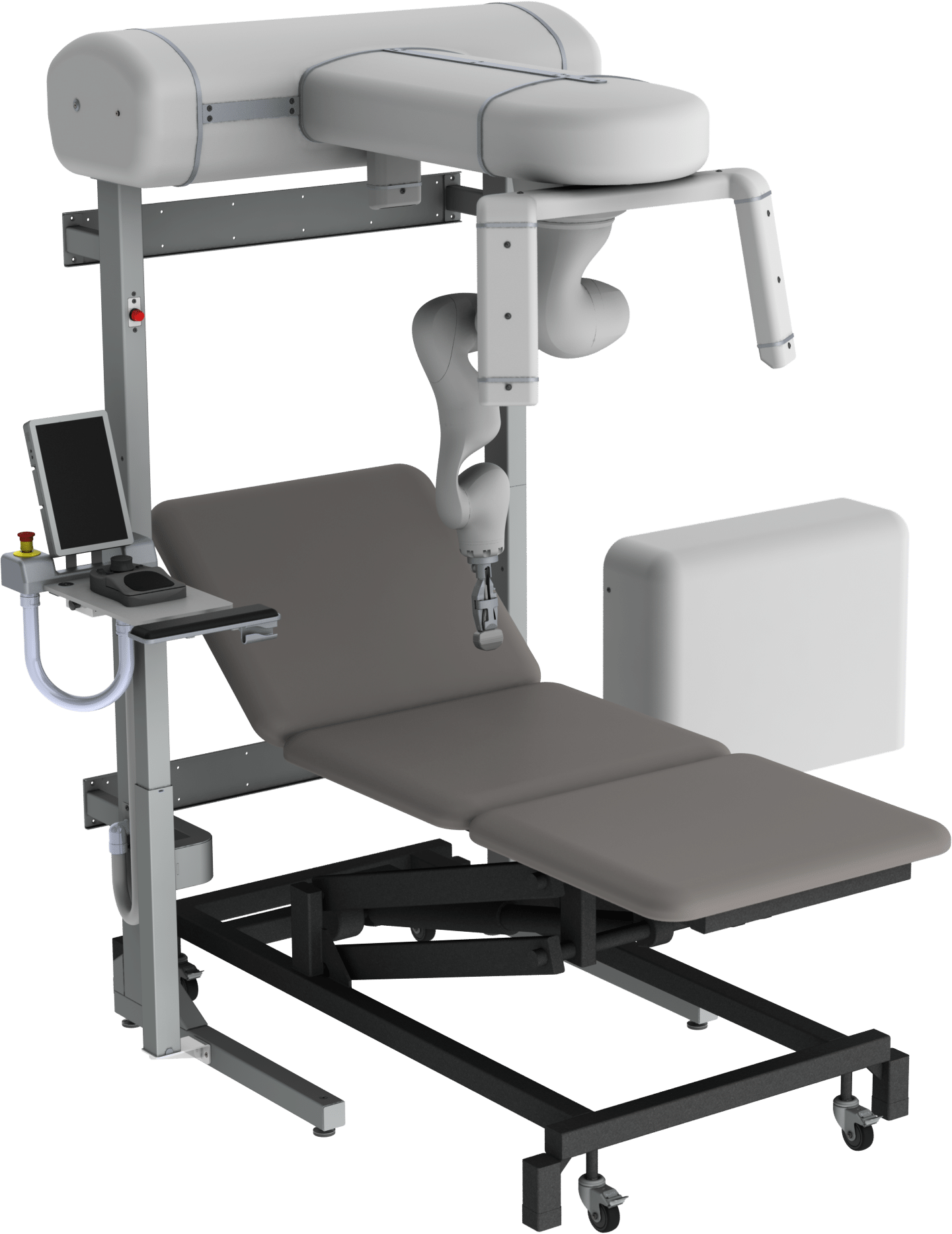

HERA®

Enhancing the working environment and efficiency, while improving scanning results

SPECIFICATIONS



Name

HERA®

Catalogue number

25-800-000 (100) / 25-800-001 (130)

Basic UDI

574400408259000006M

Warranty

Minimum 2 years and/or 10,000 hours

Rated input

100 V - 240 V AC

Frequency

50Hz - 60 Hz ± 1 Hz

Rated power input

1 kVA

Operating temperature

5°C – 35°C

Storage temperature

0°C – 45°C

Atmospheric pressure

700 - 1060 hPa

Humidity

20% - 80% RH

Environment

Indoor usage

Ingress

IP21

Maximum area of reach

500 x 500 x 400 mm

Sound level

67 DBA

Dimensions

25-800-000: 1543mm x 1513mm x 2363mm 25-800-001: 1843mm x 1513mm x 2363mm

Weight

330 kg
