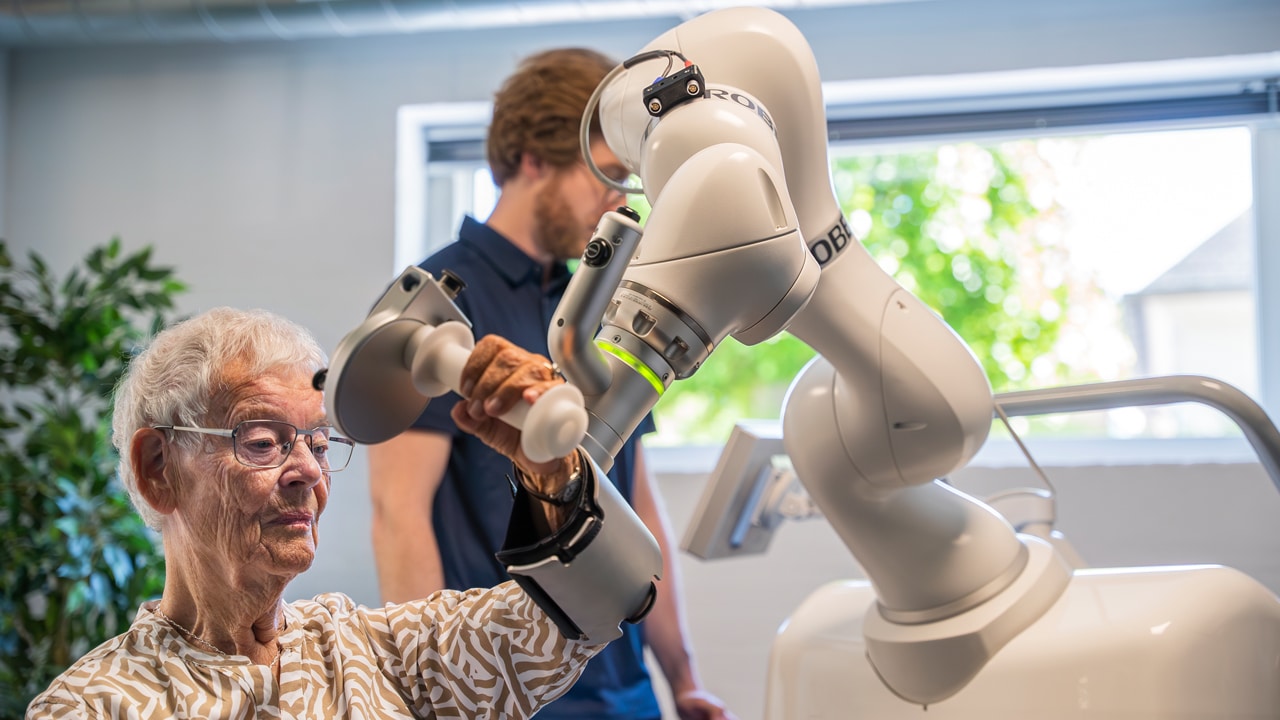

ROBERT® – UPPER EXTREMITY MODULE
Upper Extremity Module adopts all the innovative features of ROBERT®, enabling the device to train the upper limbs. The module facilitates simulating ADL (activities of daily living) complex movements, as well as isolated exercises, while assisting patients in both seated and lying positions.
With ROBERT®, patients can receive unlimited training until reaching the point of fatigue, while the therapists’ heavy workload is highly reduced. Its easy set-up and high mobility ensure that ROBERT® is a perfect fit for all small, medium, and big sized healthcare facilities.
Download brochureMAIN FEATURES

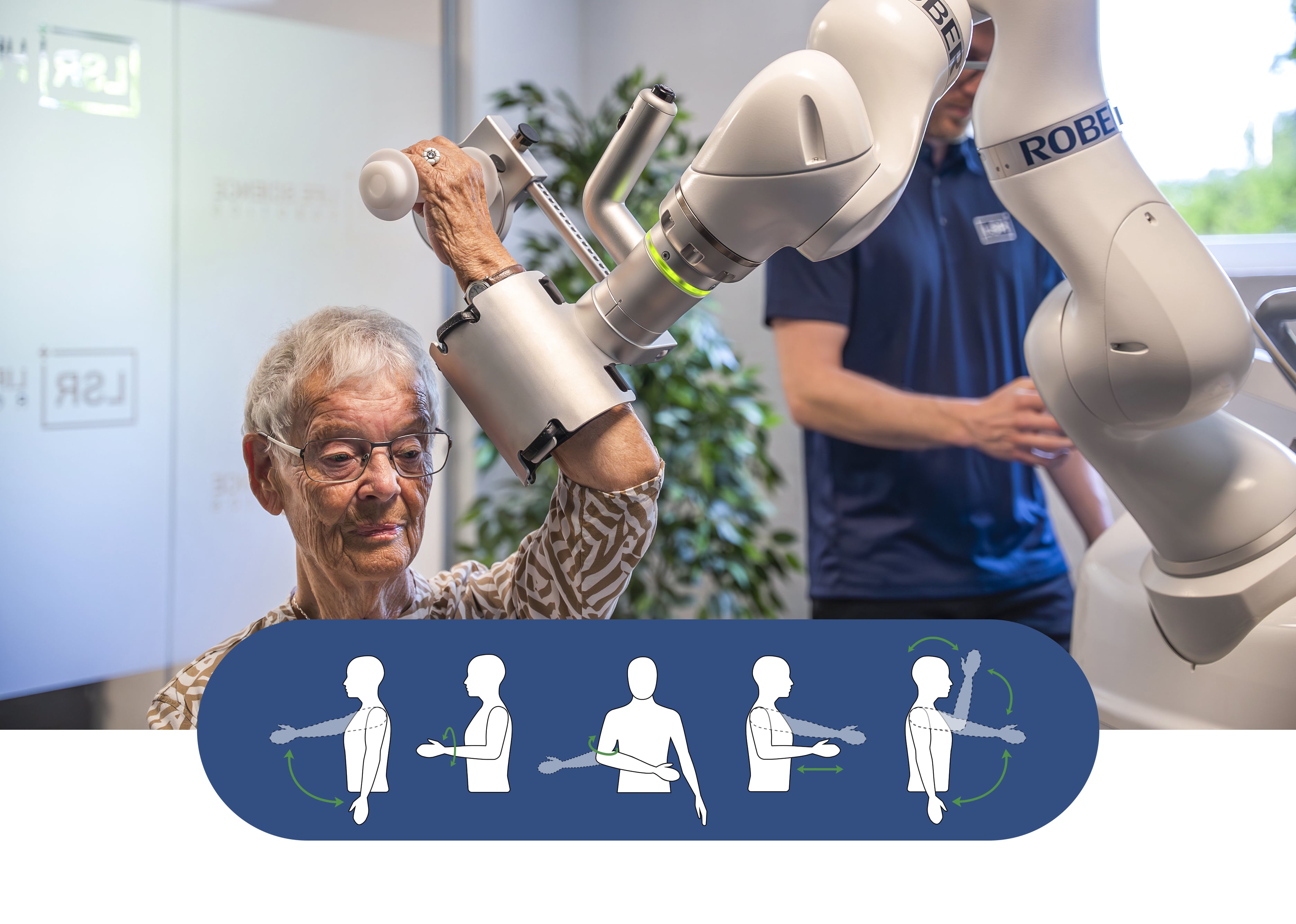

Supports all primary movements to regain basic functions in the upper limbs
Assist patients in both seated and lying positions
Offers safe training in an extensive 3D workspace
The setup we have with 2 ROBERT®s means that we can train functional exercises, we can train functional level with weight relief, and we ca train at body level with the robots, making sure that the patents receive training in all aspects.
In this way, we try to provide a better quality of life, and at the same time to save costs on the patients’ need for home care.
Rune Kürstein Physiotherapist at FysioDanmark Slagelse
BENEFITS
For patients
- Complete freedom of movement which facilitates ADL training with real-life objects
- Train either on a specific movement and joint, or on complex movements involving various joints
- Safe training in both seated and lying positions
For healthcare professionals
- Eliminates the heavy workload for the therapists
- User friendly with a quick set-up time of just 3 minutes
- Easy reporting consisting of evaluation of patients and progress monitoring
YOUR CO-THERAPIST
The new paradigm in the rehabilitation environment
ROBERT® represents a co-therapist for occupational therapists and physiotherapists, supporting them in their daily routine of functional training, and therefore reducing their workload.
Offering intensive rehabilitation enables patients to become more self-sufficient and thus take away work pressure from the nursing or home care staff, and consequently from the organization.
This solution is suitable
for patients with:
- Acquired Brain Injury – Stroke
- Traumatic Brain Injury (TBI)
- Cerebral Palsy
- Spinal Cord Injury (SCI)
- Multiple Sclerosis
- Orthopaedics Injury (shoulder, elbow)
TRAINING MODES
ACTIVE RESISTIVE
MOBILISATION
ROBERT® offers resistance against the patient’s movement. The resistance level of the exercise is adjusted to the patient’s functional strength.
ACTIVE ASSISTIVE
MOBILISATION
ROBERT® assists the patient through the exercise. The patient’s functional strength determines the level of activity during the exercise.
PASSIVE
MOBILISATION
ROBERT® supports early mobilisation of severely affected patients with reduced level of function.
This solution is relevant
for:
- Rehabilitation centres
- Physiotherapy clinics
- Hospitals (neurology, geriatrics, oncology)
- Occupational therapy department
- Nursing homes

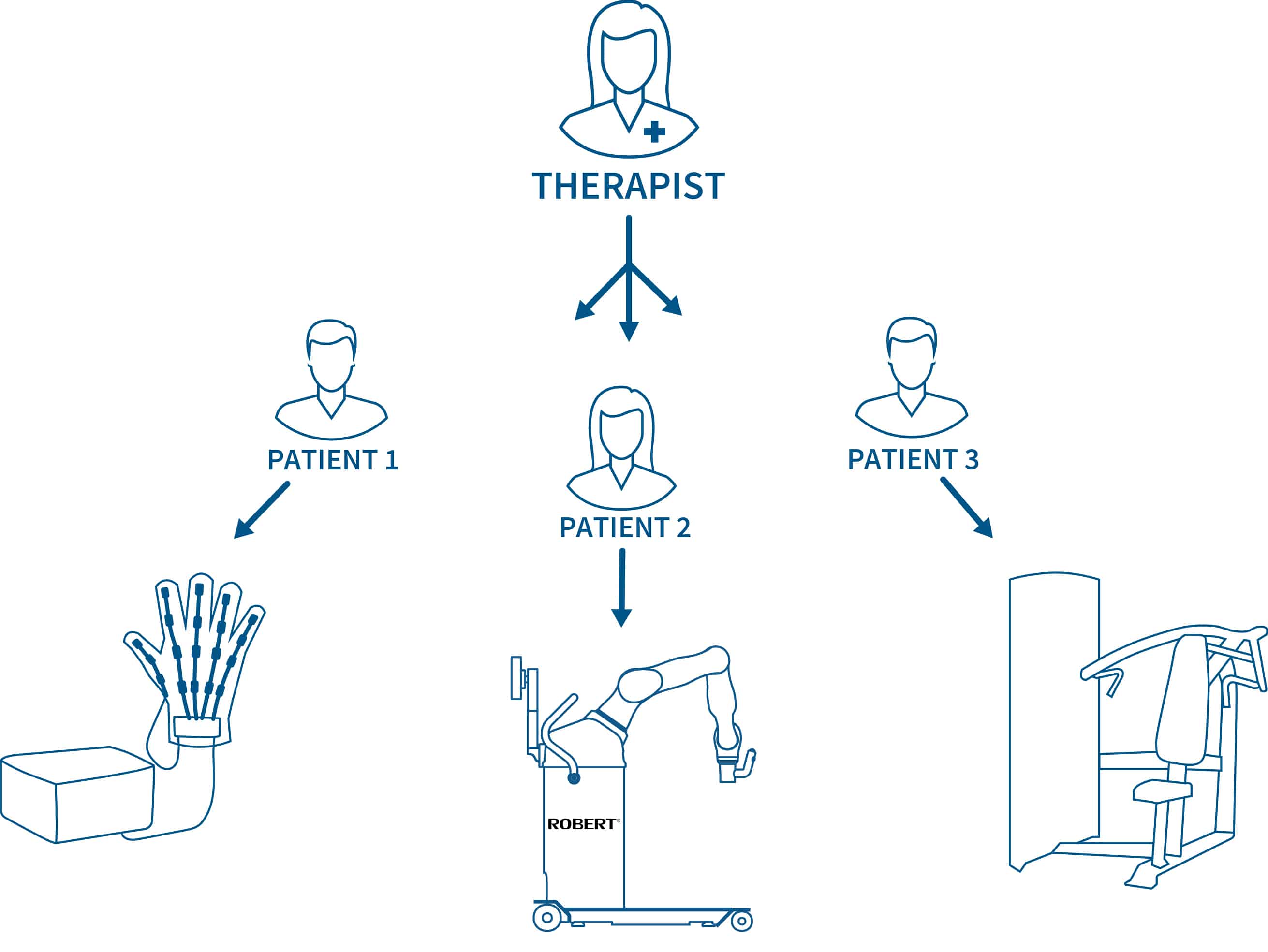

STATION-BASED TRAINING
A complete and flexible solution for rehabilitation
ROBERT® represents an efficient tool for facilitating group training where one therapist could take care of 2-4 patients at the same time.
Patients can train in different environments, receiving robotic training in a large facility next to functional training devices e.g. arm training machines, finger rehabilitation devices.
Plug and play
Offers professionals a quick, safe and intuitive set-up
Plug
Attach
Record
Play
EXERCISES SUGGESTIONS
SPECIFICATIONS
Name
ROBERT®
Catalogue number
24-800-000
Warranty
2 years and/or 10,000 hours
Rated input
110 V / 230 V AC
Frequency
50/60 Hz ± 1 Hz
Rated power input
1 kVA
Operating temperature
5°C – 35°C
Storage temperature
0°C – 45°C
Dimensions
1069mm x 766mm x 1306mm
Atmospheric pressure
700 – 1060 hPa
Humidity
20% – 80% RH
Environment
Indoor usage
Ingress
IP21
Weight
160 kg
Sound level
67 dBA
Patients up to
165 kg / 360 pounds
Certifications
ROBERT® is approved as a Class IIa medical device in compliance with the medical device directive (93/42/EEC) and is FDA registered.
